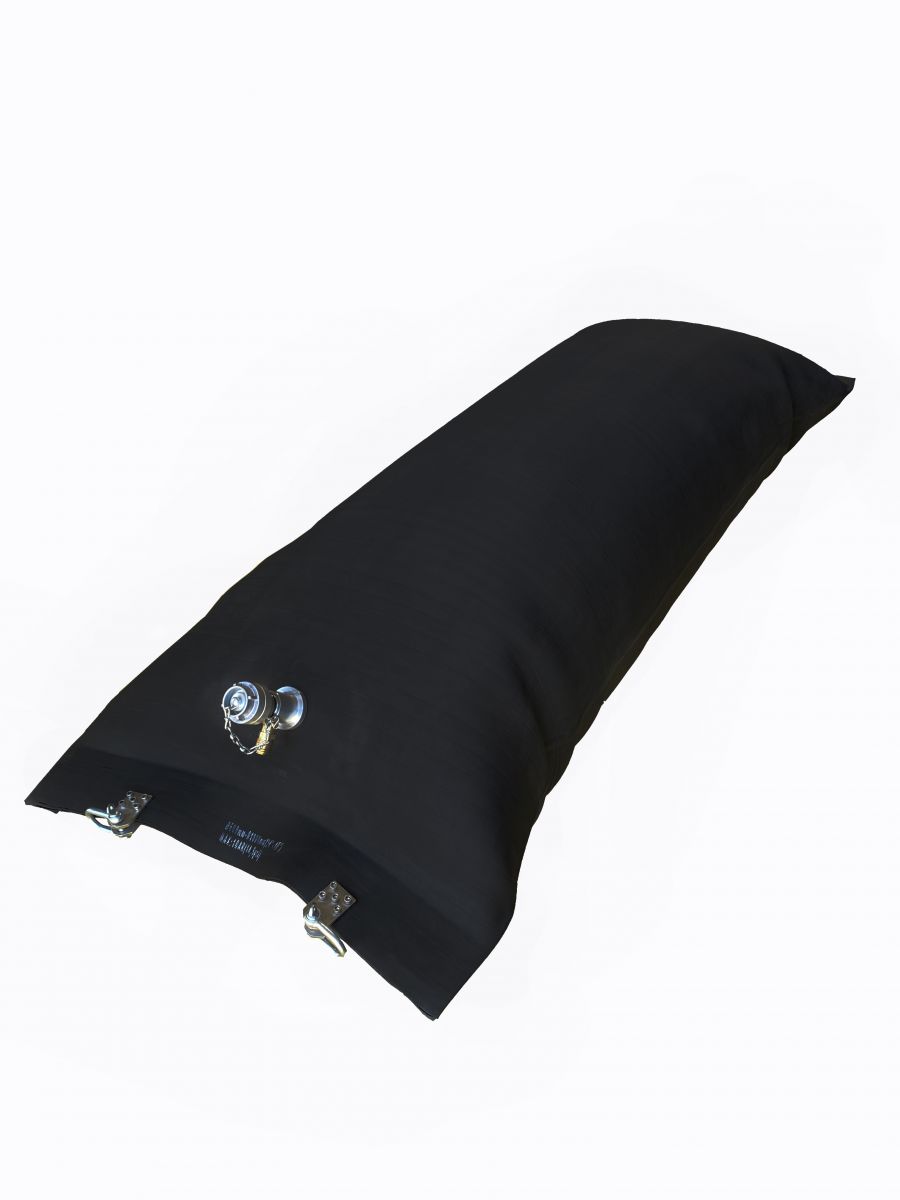

Pıllow Packer
Tapasan Pillow packers are lightweight and can inflate to fit the shape of any damaged area. Pillow packers are easy to operate and can be folded flat when deflated, making them easy to transport. One of the advantage is being positioned in the pipeline by 4 pcs D type hooks.
| Product Code | Usage Diameter Range | Max. Working Pressure |
Deflated Packer Dimensions | |||
| Min. Pipe Diameter | Max. Pipe Diameter | Product Diameter | Product Lenght | Width | ||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | |
| PP300600 | 300 | 600 | 1.0 / 15 | 287 | According to request | 450 |
| PP6001000 | 600 | 1000 | 1.0 / 15 | 514 | According to request | 807 |
| PP8001200 | 800 | 1200 | 0.9 / 13.1 | 750 | According to request | 1241 |
| PP10001400 | 1000 | 1400 | 0.8 / 11.6 | 874 | According to request | 1373 |
| PP12001600 | 1200 | 1600 | 0.6 / 8.7 | 1114 | According to request | 1750 |
| PP12001800 | 1200 | 1800 | 0.6 / 8.7 | 1114 | According to request | 1750 |
| PP15002200 | 1500 | 2200 | 0.5 / 7.3 | 1430 | According to request | 2450 |
| Product Code | Usage Pipe Range | Max. Working Pressure |
Deflated Packer Dimensions | |||
| Min. Pipe Diameter | Max. Pipe Diameter | Product Diameter | Product Lenght | Width | ||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | |
| PP300600 | 12" | 24" | 1.0 / 15 | 11" | According to request" | 17.7" |
| PP6001000 | 24" | 40" | 1.0 / 15 | 23" | According to request" | 31.7" |
| PP8001200 | 32" | 42" | 0.9 / 13.1 | 31" | According to request" | 48.8" |
| PP10001400 | 39.4" | 55.2" | 0.8 / 11.6 | 34.4" | According to request" | 54.1" |
| PP12001600 | 47.3" | 63" | 0.6 / 8.7 | 43.9" | According to request" | 68.9" |
| PP12001800 | 47.3" | 70.1" | 0.6 / 8.7 | 43.9" | According to request" | 68.9" |
| PP15002200 | 59.1" | 86.7" | 0.5 / 7.3 | 56.3" | According to request" | 96.5" |
