Long Lateral Packer

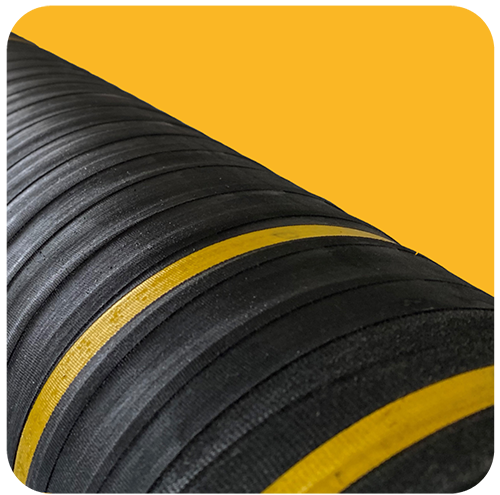

TAPASAN Long Lateral Packers are products that allow point repairs on pipelines. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C.
*Can be produced as a Push Rod compatible head.
Product Code: TB
| Product Code | Size Usage Range | Max. Working Pressure |
Deflated Plug Dimensions | Approx. Weight |
|||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (mm) | (kg) | |
| TB20030010 | 200 | 300 | 2.0 / 29 | 150 | 1000 | 1160 | 3.6 |
| TB20030015 | 200 | 300 | 2.0 / 29 | 150 | 1500 | 1660 | 4.1 |
| TB20030020 | 200 | 300 | 2.0 / 29 | 150 | 2000 | 2160 | 5.2 |
| TB20030030 | 200 | 300 | 2.0 / 29 | 150 | 3000 | 3160 | 11.1 |
| TB20030040 | 200 | 300 | 2.0 / 29 | 150 | 4000 | 4160 | 8.5 |
| TB20030050 | 200 | 300 | 2.0 / 29 | 150 | 5000 | 5160 | 10.5 |
| TB30040010 | 300 | 400 | 1.5 / 22 | 220 | 1000 | 1160 | 11.0 |
| TB30040015 | 300 | 400 | 1.5 / 22 | 220 | 1500 | 1660 | 11.8 |
| TB30040020 | 300 | 400 | 1.5 / 22 | 220 | 2000 | 2160 | 14.1 |
| TB30040030 | 300 | 400 | 1.5 / 22 | 220 | 3000 | 3160 | 18.3 |
| TB30040040 | 300 | 400 | 1.5 / 22 | 220 | 4000 | 4160 | 22.2 |
| TB30040050 | 300 | 400 | 1.5 / 22 | 220 | 5000 | 5160 | 25.8 |
| TB40050010 | 400 | 500 | 1.0 / 15 | 293 | 1000 | 1160 | 20.5 |
| TB40050015 | 400 | 500 | 1.0 / 15 | 293 | 1500 | 1660 | 23.0 |
| TB40050020 | 400 | 500 | 1.0 / 15 | 293 | 2000 | 2160 | 25.3 |
| TB40050030 | 400 | 500 | 1.0 / 15 | 293 | 3000 | 3160 | 29.5 |
| TB40050040 | 400 | 500 | 1.0 / 15 | 293 | 4000 | 4160 | 33.4 |
| TB40050050 | 400 | 500 | 1.0 / 15 | 293 | 5000 | 5160 | 37.0 |
| TB50060015 | 500 | 600 | 1.0 / 15 | 340 | 1500 | 1660 | 25.0 |
| TB50060020 | 500 | 600 | 1.0 / 15 | 340 | 2000 | 2160 | 29.4 |
| TB50060030 | 500 | 600 | 1.0 / 15 | 340 | 3000 | 3160 | 31.0 |
| TB50060040 | 500 | 600 | 1.0 / 15 | 340 | 4000 | 4160 | 33.0 |
| TB50060050 | 500 | 600 | 1.0 / 15 | 340 | 5000 | 5160 | 37.0 |
| TB60080015 | 600 | 800 | 1.0 / 15 | 400 | 1500 | 1660 | 33.4 |
| TB60080020 | 600 | 800 | 1.0 / 15 | 400 | 2000 | 2160 | 44.5 |
| TB60080030 | 600 | 800 | 1.0 / 15 | 400 | 3000 | 3160 | 50.4 |
| TB700100015 | 700 | 1000 | 1.0 / 15 | 555 | 1500 | 1660 | 39.5 |
| TB700100020 | 700 | 1000 | 1.0 / 15 | 555 | 2000 | 2160 | 48.7 |
| TB700100025 | 700 | 1000 | 1.0 / 15 | 555 | 2500 | 2660 | 58.0 |
| TB700120020 | 700 | 1200 | 1.0 / 15 | 555 | 2000 | 2160 | 50.1 |
| TB700120025 | 700 | 1200 | 1.0 / 15 | 555 | 2500 | 2660 | 59.4 |
| TB1000150020 | 1000 | 1500 | 1.0 / 15 | 844 | 2000 | 2160 | 61.3 |
| TB1000150030 | 1000 | 1500 | 1.0 / 15 | 844 | 3000 | 3160 | 79.5 |
| Product Code | Size Usage Range | Max. Working Pressure |
Deflated Plug Dimensions | Approx. Weight |
|||
| Min. Diameter | Max. Diameter | Diameter | Lenght | Total Lenght | |||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (inch) | (lbs) | |
| TB20030010 | 8" | 12" | 2.0 / 29 | 6" | 39.3" | 45.6" | 7.9 |
| TB20030015 | 8" | 12" | 2.0 / 29 | 6" | 59.0" | 65.3" | 9.0 |
| TB20030020 | 8" | 12" | 2.0 / 29 | 6" | 78.8" | 85.0" | 11.4 |
| TB20030030 | 8" | 12" | 2.0 / 29 | 6" | 118.1" | 124.4" | 24.5 |
| TB20030040 | 8" | 12" | 2.0 / 29 | 6" | 157.5" | 163.7" | 18.7 |
| TB20030050 | 8" | 12" | 2.0 / 29 | 6" | 197.0" | 203.1" | 23.1 |
| TB30040010 | 12" | 16" | 1.5 / 22 | 8.6" | 39.3" | 45.6" | 24.2 |
| TB30040015 | 12" | 16" | 1.5 / 22 | 8.6" | 59.0" | 65.3" | 25.9 |
| TB30040020 | 12" | 16" | 1.5 / 22 | 8.6" | 78.8" | 85.0" | 31.0 |
| TB30040030 | 12" | 16" | 1.5 / 22 | 8.6" | 118.1" | 124.4" | 40.2 |
| TB30040040 | 12" | 16" | 1.5 / 22 | 8.6" | 157.5" | 163.7" | 48.8 |
| TB30040050 | 12" | 16" | 1.5 / 22 | 8.6" | 197.0" | 203.1" | 56.7 |
| TB40050010 | 16" | 20" | 1.0 / 15 | 11.5" | 39.3" | 45.6" | 44.5 |
| TB40050015 | 16" | 20" | 1.0 / 15 | 11.5" | 59.0" | 65.3" | 50.7 |
| TB40050020 | 16" | 20" | 1.0 / 15 | 11.5" | 78.8" | 85.0" | 55.7 |
| TB40050030 | 16" | 20" | 1.0 / 15 | 11.5" | 118.1" | 124.4" | 65.0 |
| TB40050040 | 16" | 20" | 1.0 / 15 | 11.5" | 157.5" | 163.7" | 73.6 |
| TB40050050 | 16" | 20" | 1.0 / 15 | 11.5" | 197.0" | 203.1" | 81.5 |
| TB50060015 | 20" | 24" | 1.0 / 15 | 13.4" | 59.0" | 65.3" | 55.1 |
| TB50060020 | 20" | 24" | 1.0 / 15 | 13.4" | 78.8" | 85.0" | 64.8 |
| TB50060030 | 20" | 24" | 1.0 / 15 | 13.4" | 118.1" | 124.4" | 68.3 |
| TB50060040 | 20" | 24" | 1.0 / 15 | 13.4" | 157.5" | 163.7" | 72.7 |
| TB50060050 | 20" | 24" | 1.0 / 15 | 13.4" | 197.0" | 203.1" | 81.5 |
| TB60080015 | 24" | 32" | 1.0 / 15 | 16" | 59.0" | 65.3" | 73.4 |
| TB60080020 | 24" | 32" | 1.0 / 15 | 16" | 78.8" | 85.0" | 97.9 |
| TB60080030 | 24" | 32" | 1.0 / 15 | 16" | 118.1" | 124.4" | 110.8 |
| TB700100015 | 28" | 40" | 1.0 / 15 | 21.8" | 59" | 65.3" | 87.0 |
| TB700100020 | 28" | 40" | 1.0 / 15 | 21.8" | 78.8" | 85.0" | 107.5 |
| TB700100025 | 28" | 40" | 1.0 / 15 | 21.8" | 98.4" | 104.7" | 128 |
| TB700120020 | 28" | 48" | 1.0 / 15 | 21.8" | 78.8" | 85.0" | 110.5 |
| TB700120025 | 28" | 48" | 1.0 / 15 | 21.8" | 98.4" | 104.7" | 131 |
| TB1000150020 | 40" | 60" | 1.0 / 15 | 33.2" | 78.8" | 85.0" | 135.3 |
| TB1000150030 | 40" | 60" | 1.0 / 15 | 33.2" | 118.1" | 124.4" | 175.3 |
