Professional Pipe Test Plug
TAPASAN Pipe Test Plugs are products that help to test the pipeline during the temporary blinding of the pipelines and to ensure the evacuation of the fluid in the pipeline. These are produced by vulcanizing SBR+NR rubber and high-strength fabrics. It is resistant to temperatures between -30°C and +70°C.
Product Code: SKTB
| Product Code | Size Usage Range | Max. Working Pressure |
Deflated Plug Dimensions | Back Pressure |
By-Pass Size | Approx. Weight |
||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (mm) | (mm) | (bar) / (psi) | (mm) | (mm) | (bar) / (psi) | (inch) | (kg) | |
| SKTB70150 | 70 | 150 | 1.5 / 22 | 70 | 400 | 0.5 / 7.3 | 1" | 1.9 |
| SKTB100150 | 100 | 150 | 1.5 / 22 | 87 | 260 | 0.5 / 7.3 | 1" | 1.9 |
| SKTB100200 | 100 | 200 | 1.5 / 22 | 94 | 400 | 0.5 / 7.3 | 1" | 2.1 |
| SKTB125200 | 125 | 200 | 2.5 / 36 | 117 | 260 | 0.5 / 7.3 | 1"+1/4" | 2.1 |
| SKTB200500 | 200 | 500 | 1.5 / 22 | 191 | 680 | 0.5 / 7.3 | 1"+2" | 6.8 |
| SKTB300600 | 300 | 600 | 1.5 / 22 | 240 | 680 | 0.5 / 7.3 | 1"+2" | 15.2 |
| SKTB375750 | 375 | 750 | 1.5 / 22 | 354 | 800 | 0.5 / 7.3 | 2x1"+3" | 20.5 |
| SKTB500800 | 500 | 800 | 1.5 / 22 | 440 | 800 | 0.5 / 7.3 | 2x1"+4" | 35.0 |
| SKTB5001200 | 500 | 1200 | 1.5 / 22 | 440 | 990 | 0.5 / 7.3 | 2x1"+4" | 46.8 |
| Product Code | Size Usage Range | Max. Working Pressure |
Deflated Plug Dimensions | Back Pressure |
By-Pass Size | Approx. Weight |
||
| Min. Diameter | Max. Diameter | Diameter | Lenght | |||||
| (inch) | (inch) | (bar) / (psi) | (inch) | (inch) | (bar) / (psi) | (inch) | (kg) | |
| SKTB70150 | 2.8" | 6" | 1.5 / 22 | 2.8" | 16" | 0.5 / 7.3 | 1" | 4.1 |
| SKTB100150 | 4" | 6" | 1.5 / 22 | 3.4" | 10" | 0.5 / 7.3 | 1" | 4.1 |
| SKTB100200 | 4" | 8" | 1.5 / 22 | 3.7" | 16" | 0.5 / 7.3 | 1" | 4.6 |
| SKTB125200 | 5" | 8" | 2.5 / 36 | 4.6" | 10" | 0.5 / 7.3 | 1"+1/4" | 4.6 |
| SKTB200500 | 8" | 20" | 1.5 / 22 | 7.5" | 27" | 0.5 / 7.3 | 1"+2" | 14.9 |
| SKTB300600 | 12" | 24" | 1.5 / 22 | 9.4" | 27" | 0.5 / 7.3 | 1"+2" | 33.4 |
| SKTB375750 | 15" | 30" | 1.5 / 22 | 14.0" | 32" | 0.5 / 7.3 | 2x1"+3" | 45.1 |
| SKTB500800 | 20" | 32" | 1.5 / 22 | 17.3" | 32" | 0.5 / 7.3 | 2x1"+4" | 77.0 |
| SKTB5001200 | 20" | 48" | 1.5 / 22 | 17.3" | 39" | 0.5 / 7.3 | 2x1"+4" | 102.9 |
Accessories

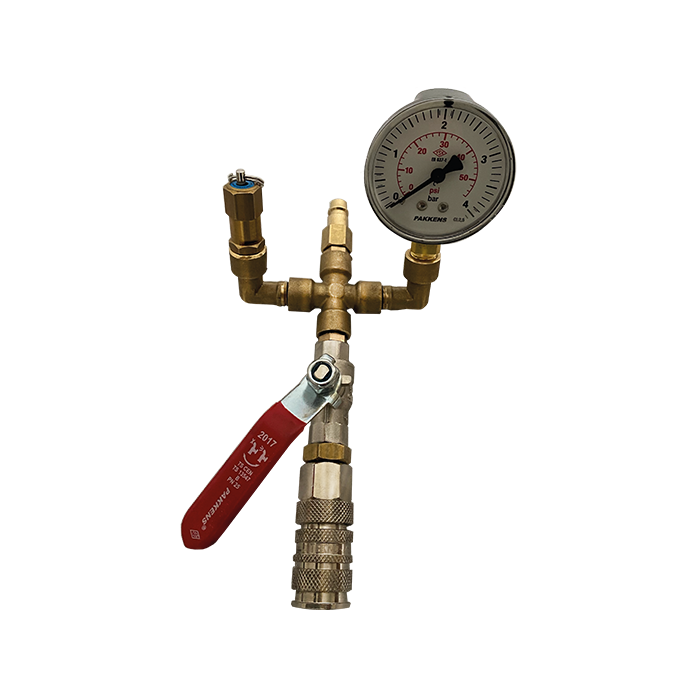

Pressure Controller with Safety Valve
VHK25 - 2.5 bar
Pressure Controller with Regulator
RHK15 - 1.5 Bar
RHK25 - 2.5 Bar
RHK40 - 4.0 Bar
Water Hose
STH01 - 1"
STH02 - 2"
STH03 - 3"
STH04 - 4"
Inflating Hose
HH06 - 6m
HH10 - 10m
HH15 - 15m
HH25 - 25m
Water Test Adaptor
STA01 - 1"
STA02 - 2"
STA03 - 3"
STA04 - 4"
Polylift Inflating Hose with Hook
KHK06 - 6m
KHK12 - 12m
Air Test Adaptor
HTA01 - 1"
HTA02 - 2"
HTA03 - 3"
HTA04 - 4"
